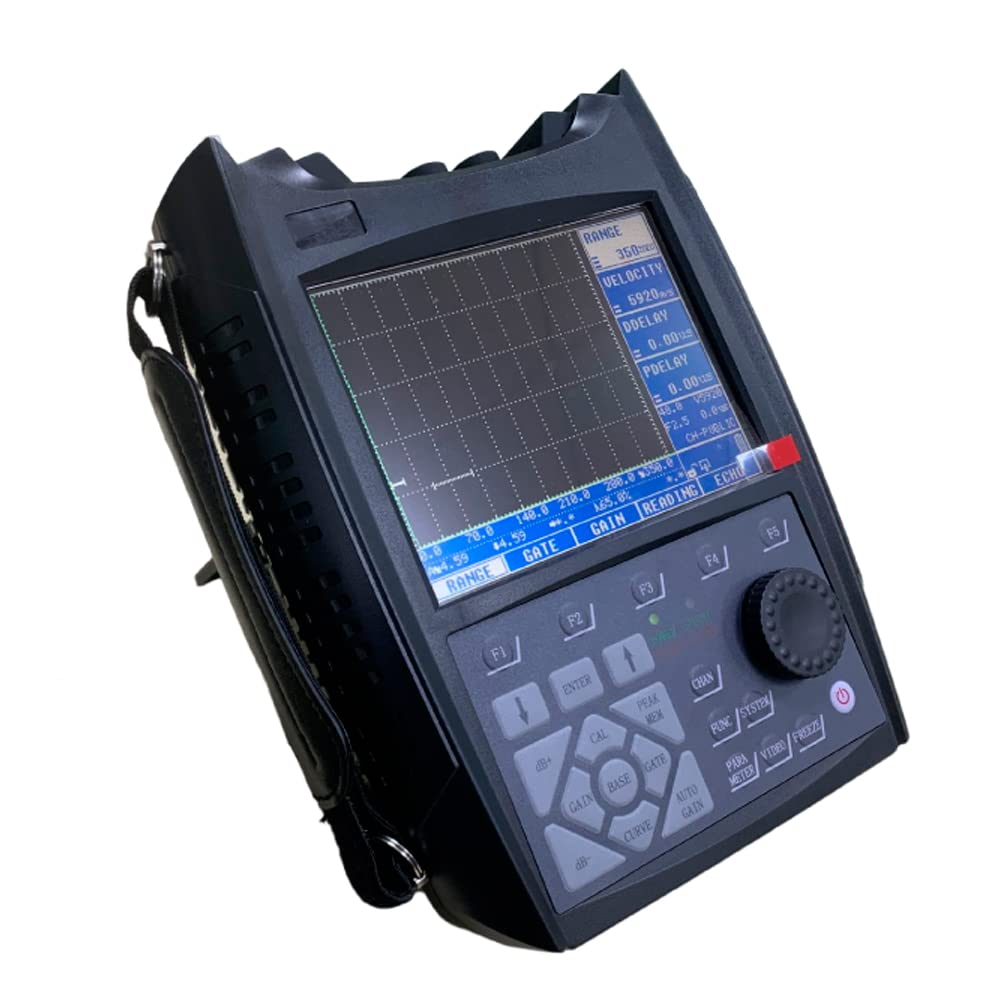

SUB180 Ultrasonic Flaw Detector Non-Destructive Detector Testing Scope 0～25000mm

*Positive half-wave, negative half-wave, full wave, three kinds of detection mode*Lithium battery ensures more than 20h continuous working, can do testing while charging*USB2.0 data transmission*Automatic calibrationSpecification:Item:SUB180Testing scope (mm): 0～25000Working freq. (MHz):0.2～15Sound velocity (m/s):200～20000Surplus sensitivity (dB):＞62Gain range (dB):0～110Sampling rate (MHz):100Display delay (μs):-20～+3400Probe zero-offset(μs):0～99.99Level of electrical noise:≤10%Resolution Ratio (dB):＞40Linear inhibition:0～80% (digital suppression)Vertical linear error:≤3%Horizontal linear error:≤0.1%Dynamic range (dB):≥32Battery (V):6x3.7 (lithium battery)Electricity (V):8.4Ambient Temp. (°C):-20～50Ambient humidity:20%～90%RHSize (mm):230*170*55Weight (Kg):1.56

• SUB180 portable ultrasonic flaw detector series is specially designed for personnel use on non-destructive testing, which could testing、position、evaluation and diagnosis of various flaws.
• It can easily and accurately conduct non-destructive testing on welding defects, cracks, internal pores of the work piece and other defects.
• It is widely used on industries such as electrical power project, boiler and pressure vessels, steel structure, military industry, aviation, railway transportation, automatic machine equipment and so on.
• TFT Color screen with 5.7 inches, brightness and color can be set freely,Timely and dynamic colorful video
• Sound-light alarm, low battery alarming under various condition,With the functions of defect, wave crest, memory, assist qualitative evaluation
