AHD Night Vision White Car Brake Light Rear View Reverse Camera Compatible with Mercedes Benz Viano Sprinter Vito Compatible with VW Transporter

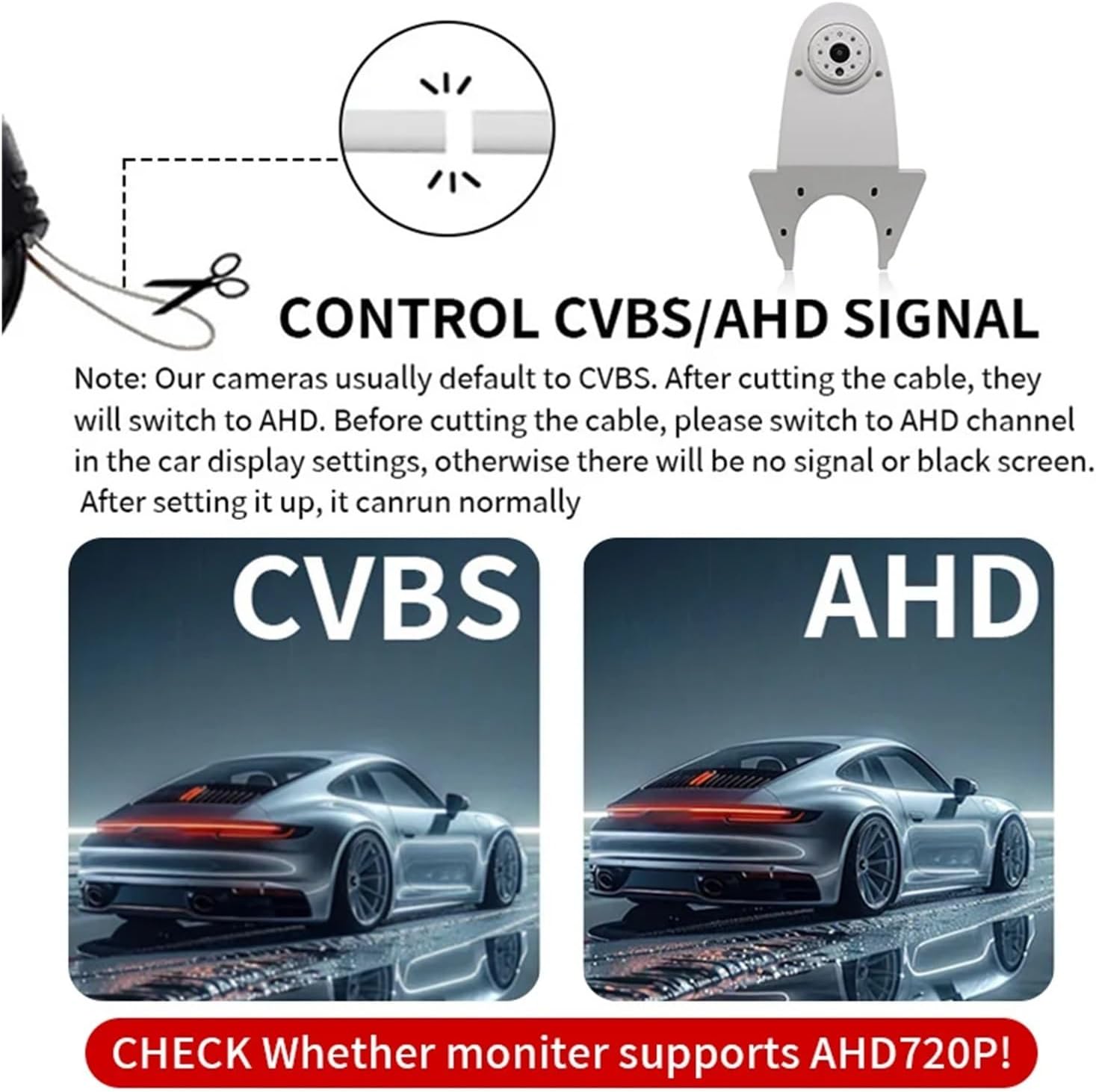

NOTE:(1)Please check if your Android monitor supports AHD720P before purchasing(2)Our car camera only supports Android large screens. Please check carefully before purchasing(3)Because there may be slight differences between carsproduced in different countries, please check the size beforebuying.Note: Cameras with CVBS CCD video signal is universal Compatible With all monitors, but AHD signal will only work with AHD monitor! *If AHD720P cannot be selected, AHD720P cameras are not supported!SO, if the monitor does not support AHD signal, it can be switched to CVBSAdjustment to AHD signal via monitor settings is required before mounting the camera:Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD720PConversion Line Control*Note:If the monitor does not show the image, you can cut the white line to switch to another channel, and then reconnect the cameraPossible issues that may arise during the installation processAfter installation, black screen, no signal, blurred screen, and black and white image appearResolvent:1. Check if the camera cable is not properly connected2. First, check if the Monitor is on the same channel as the camera,as our camera is Dual channel camera, so it is necessary to confirm whether the camera is a CVBS or AHD channel, usually The default is CVBS channel, and after cutting the green line, it becomes AHD channel. After confirming the camera channel,It is necessary to set up channels corresponding to the camera on the car Monitor, such as the camera Compatible With AHD channel, the monitor needs to be set to AHD 720P channel. If the camera If it is a CVBS channel, set the Monitor to CVBS/NTSC==========Lens Material : Plastic + GlassLength of Video Cable : 10MShell Material : PlasticWire or : WireOrigin : Mainland ChinaViewing Angle : 170°Material : ABSWelcome to my auto parts s

• The high pixel lens can clearly show the details of the objects behind you, so that you can see the surrounding environment at a glance when reversing.
• Large Angle visual range, effectively reduce visual blind areas, comprehensive coverage of the rear area of the vehicle.
• After professional waterproof treatment, it can resist heavy rain, car washing and other situations to ensure stable work in humid environment.
• With good seismic performance, the image is still stable when driving on the bumpy road, and there will be no blur or shake.
• Simple installation, no complex modification, owners can easily install themselves.
