8.4 inch 800x600 4:3 M084GNS1 IPS Resisitive Touch Sensor LCD Screen with USB Audio Control 20 pins Board,for DIY Monitor Display

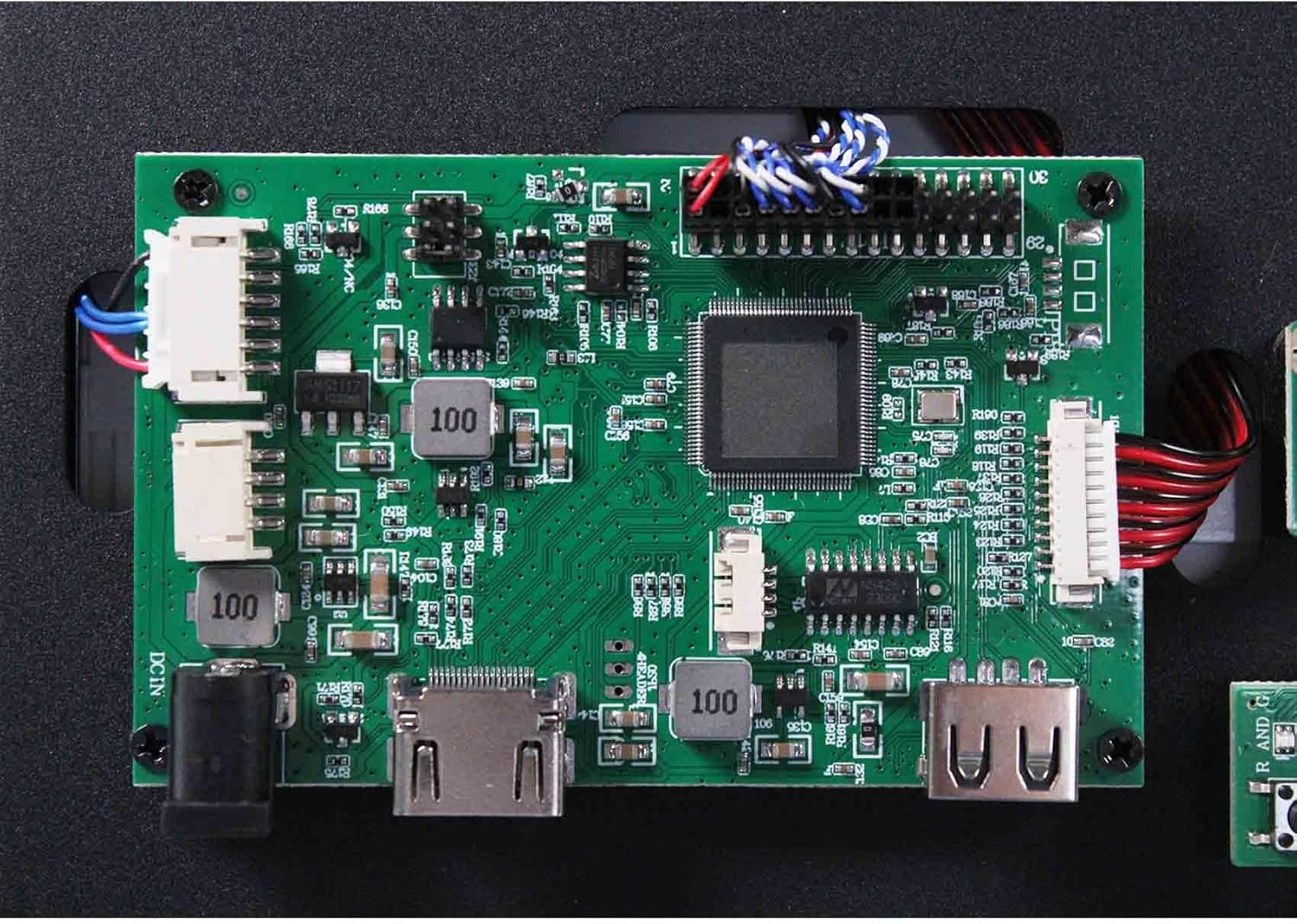

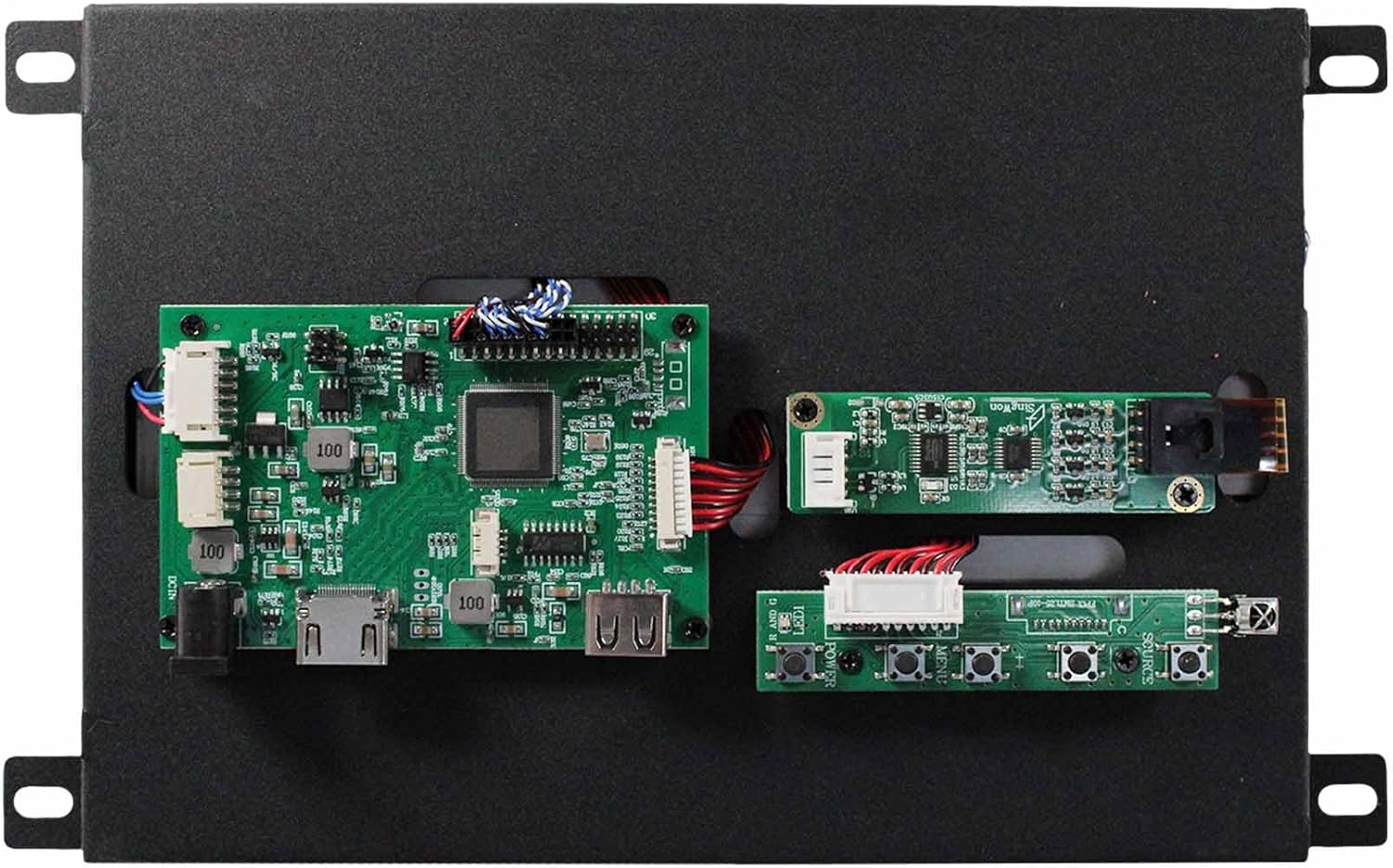

LCD Controller Board:Input Power Adapter: 12Vdc 2A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: USBUSB: Support Video Playback, Picture Playback, Text Playback,Upgrade FirmwareAudio: Speaker Support 8ohm 2W/ 4ohm 2WOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 90mm x 51mm x 14mm8.4" M084GNS1 R1 800X600 Resistive Touch LCD ScreenDisplay Mode TN, Normally White, Transmissive Resolution 800(RGB)×600 ,SVGAOutline Size 203 × 142.5×6.2 (H×V×D)mmDisplay Area 170.4 × 127.8 (H×V)mmBrightness 350 cd/m² (Typ.)Contrast Ratio 600:1 (Typ.) (TM) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]Interface Parallel RGB (1 ch, 8-bit) , 20 pins , FPCBacklight WLEDInput Voltage 3.3V (Typ.)Packing list:1× 8.4" 800X600 Resistive Touch LCD Monitor With USB LCD Controller Board

• 【4:3 aspect ratio screen】1024x768 resolution,1000nit high brightness ,metal shell is sturdy,just required power on ,enter into ,it can work well with you.
• 【Parameters】Outline Size 326.5× 253.5×10(H×V×D)mm,Display Area 304.1 × 228.1 (H×V)mm,Contrast Ratio 700:1,Interface LVDS (1 ch, 6/8-bit),20 pins Connector,Backlight WLED.
• 【Viarious Video Input Port】Video Input: USB,can connecting PC computer ,laptop ,Rpi or other ports with these ports,Video Output: Speaker ,Earphone.
• 【Resistive Touch Panel】No need driver installed ,directly connecting USB touch cable well ,then power on, the touch function can be worked.
• 【Usage】Widely used to working on industrial automation, monitoring system,Commercial Screen Display,etc..
