3/4" Brass Motorized Ball Valve - NPT Electric Water Valve 5 Wire with Full Port,9-24V DC Electrical Ball Valve,Signal Feedback
4.8 (103 items)
Limited Time Sale$23.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211105467 | Release Date | 2026/04/04 | List Price | $16.00 | Model Number | 211105467 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 5 Wire & Signal Feedback—When the ball valve is fully open or closed, the actuator automatically cuts off power to prevent circuit overheating during prolonged operation. The control method employs reverse polarity wiring (black wire: negative terminal, red wire: positive terminal, white wire: common terminal, green wire: open position signal, yellow wire: closed position signal). The open/close position indicator lights illuminate.
- Durable & Long-Lasting–Built from high-quality brass for long-lasting reliability, movafaFH motorized ball valve withstands 80,000 - 100,000+ cycles, perfect for automated water control systems
- No Leak & Wide Applications - Adopt EPDM Rubber Gasket and float ball valve that superior sealing performance and good resistance to water, steam, alkalis, acids, and oxygen-containing solvents, Ideal for O2,O3, automated irrigation, and water filtration systems
- NPT Threading & Full Port - Features 3/4" brass full port and NPT threading for fit connections, effectively reduces pressure loss, ensuring optimal flow dynamics and efficiency

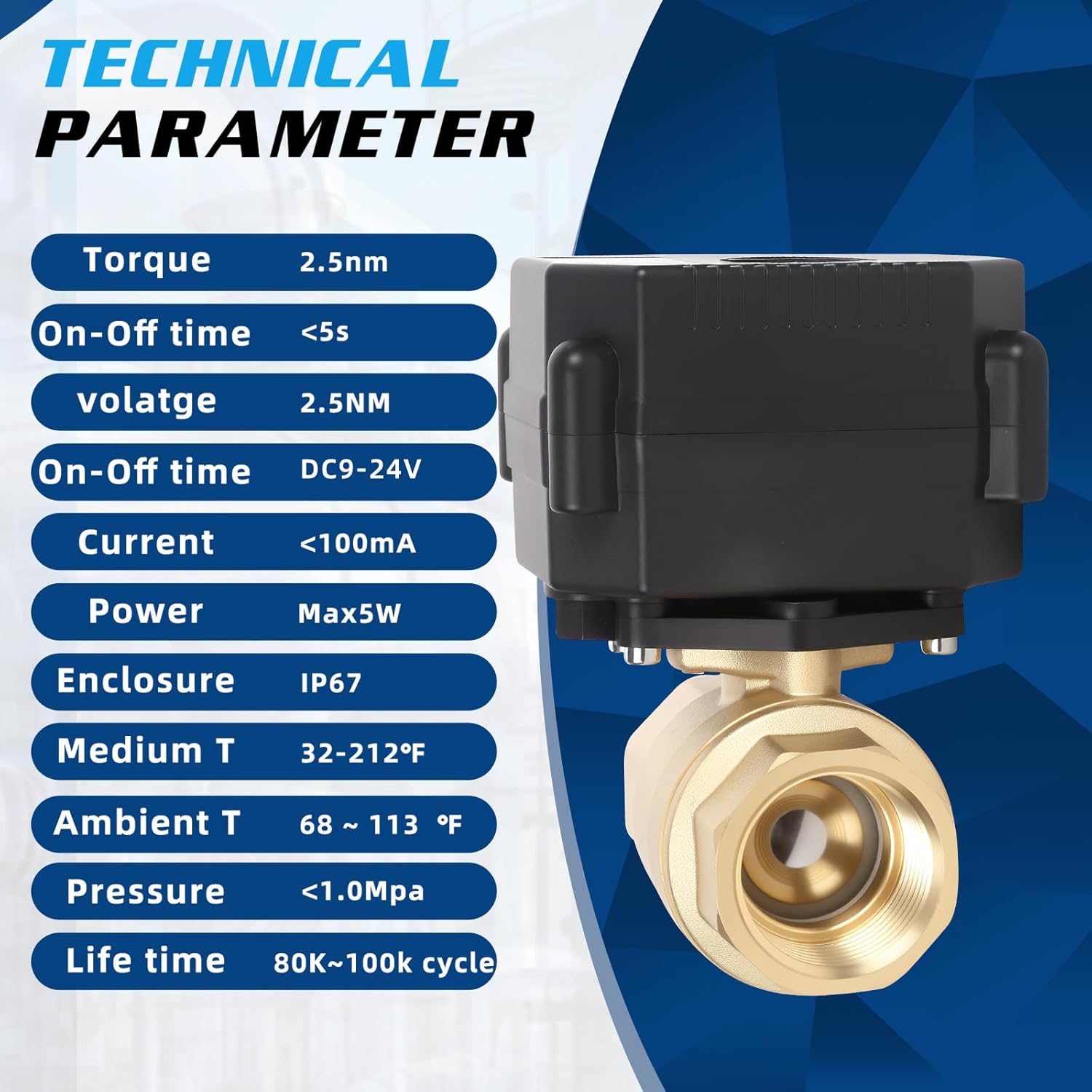

- Wide 9-24V DC Compatibility - Operates efficiently across the entire voltage range, opening/closing in just 3-5 seconds. Equipped with limit switches for automatic power disconnection when fully open or closed that low power consumption. It is a great alternative to solenoid valves
| Size | 0.75 Inch |
|---|---|
| Brand Name | movafaFH |
| Unit Count | 1.0 Count |
| Manufacturer | movafaFH |
| Material Type | Brass |
| Exterior Finish | Brass |
| Item Dimensions | 2.56 x 1.97 x 3.54 inches |
| Number of Ports | 2 |
| Maximum Pressure | 1000 Kilopascal |
| Specification Met | ETL, RoHS |
| Inlet Connection Size | 0.75 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.75 Inches |
| Outlet Connection Type | FNPT |
